Deep Recessed SMD LED Downlight – Ultra Low Glare Lighting Solution

Premium anti-glare LED downlight with deep white trim, Bridgelux/Osram SMD chips, and IP44 protection. Ideal for upscale commercial interiors.

Main product image
Product detail 1
Product detail 2
Product detail 3

Key Features

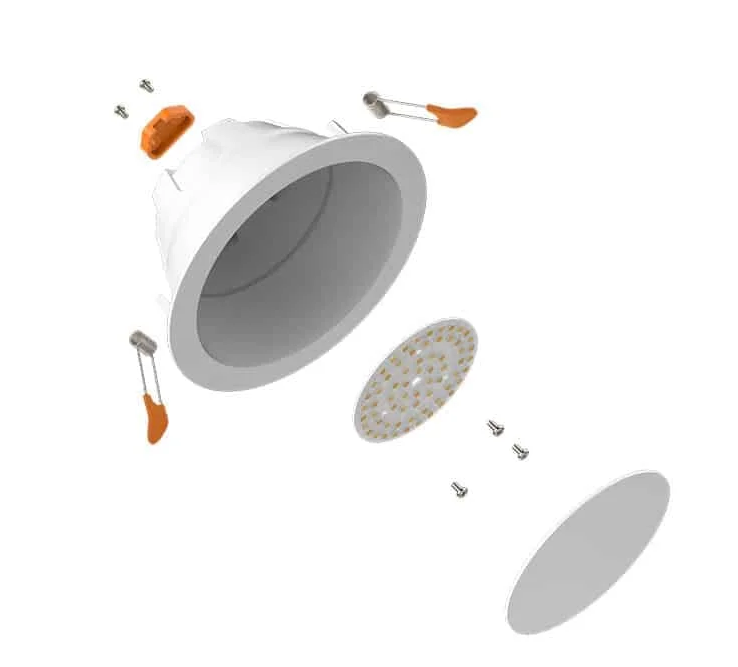

Deep recessed aluminum housing with anti-glare white trim design and UGR<17.

High-lumen SMD chips from Bridgelux or Osram delivering up to 120lm/W.

Driver options include LiFud, Osram, Philips with PF>0.9 and THD<10%.

Available in 7W to 25W models with consistent 90° beam angle and IP44 protection.

Certified with CE, RoHS, EMC, LVD standards and backed by a 3/5 year warranty.

Technical Specifications

Housing: Aluminum body, matte white finish, deep recessed design

Driver: 110/220-240VAC, PF>0.9, THD<10%, Output: 36VDC, IP22

Optical: Bridgelux/Osram SMD, CRI>80/90, 2700K–6500K, SDCM<3

Efficiency: 100–120lm/W, Lumens maintenance: 98%@10,000hrs

Certification: CE, RoHS, LVD, EMC, Warranty: 3/5 years

Detailed Description

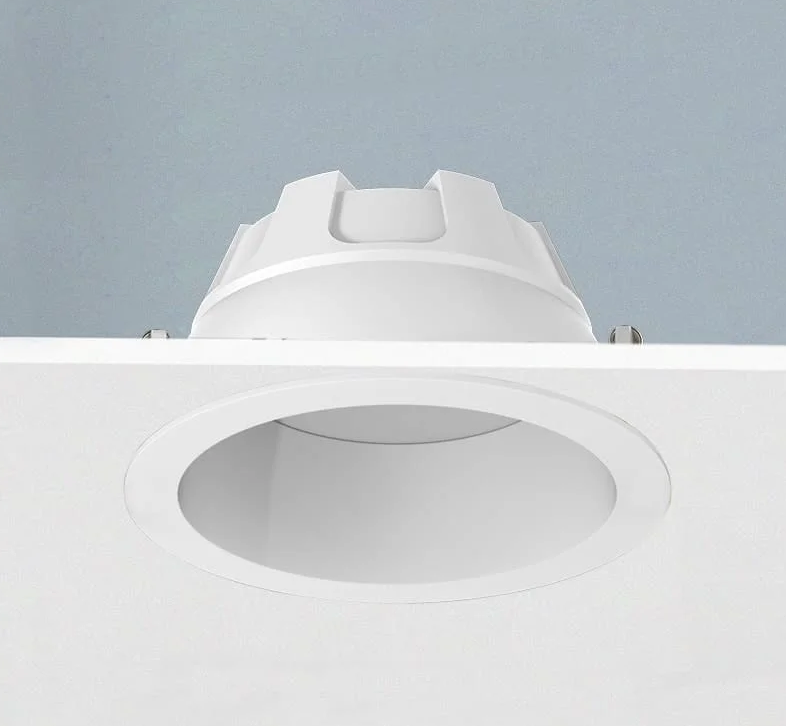

The Deep Recessed SMD LED Downlight (Model: GR-DL-A-04) is a high-end, anti-glare lighting solution, crafted with a deep aluminum body and white-finished trim that ensures a Unified Glare Rating (UGR) below 17. Its structure supports seamless recessed installation for sophisticated interior aesthetics.

This downlight is powered by premium control gear from leading brands including LiFud, Osram, and Philips. With an input of 110/220-240VAC and a high power factor (>0.9), the driver operates with THD<10% and offers outstanding energy efficiency. Surge protection and long-term durability (up to 50,000 hours) make it reliable for demanding applications.

Equipped with Bridgelux or Osram SMD LEDs, the luminaire provides excellent color fidelity (CRI>80 or >90) and a wide range of color temperatures from 2700K to 6500K. It maintains superior performance with 100–120lm/W luminous efficacy and consistent color output (SDCM<3). Certified to CE, RoHS, and EMC standards, and available in 7W, 15W, 20W, and 25W options with IP44 protection, this fixture is ideal for retail, hospitality, and premium commercial use.
