Recessed Adjustable Led Linear Downlight 9W-18W-27W – Premium Linear Lighting Solution

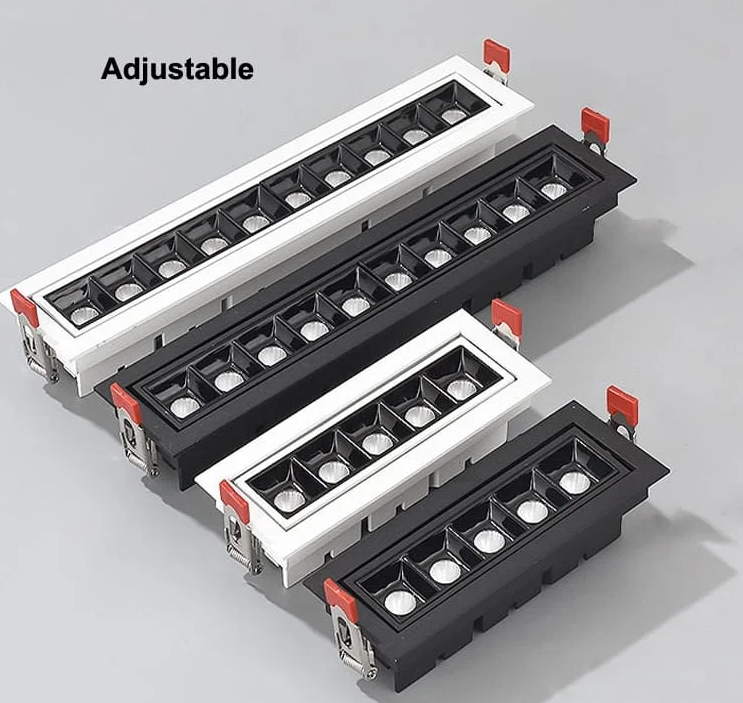

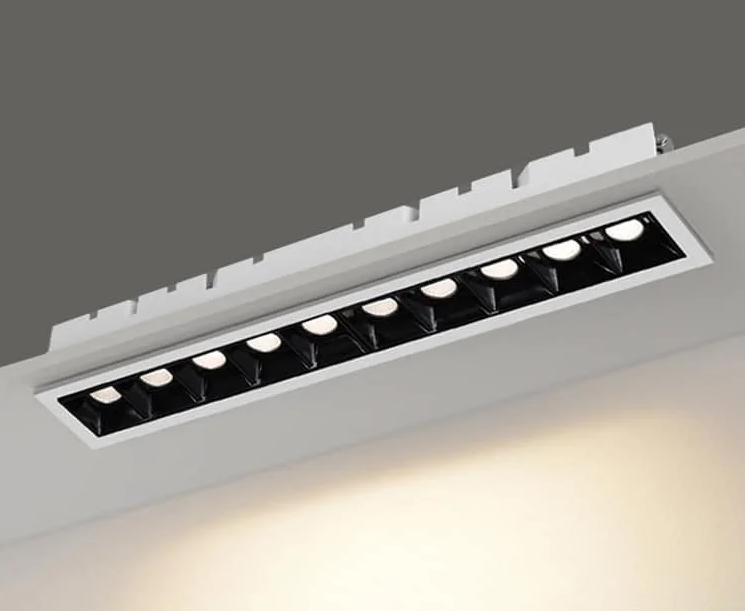

This LED linear downlight, also known as a linear LED spotlight, is made of die-cast aluminum and includes reflectors. There are both non-adjustable and adjustable types available. The adjustable linear downlight can be tilted 30° to function as a wall washer downlight, making it a versatile choice. These lights are ideal for installation in living rooms and office spaces, especially when paired with anti glare downlights.
Key Features
Multiple wattage options from 9W to 30W with high light output (850-3100lm).
Premium materials: Die-cast aluminum body, polycarbonate reflector, high-strength metal clips.
Advanced optical system with 24°/36° beam angle options and UGR<19.
High efficiency LED driver with >87% efficiency and multiple brand options.
Certified with CE, CCC, CB, ENEC, RCM standards with 5 years warranty.
Technical Specifications
Installation: Recessed, Type: Fixed/Adjustable, Working life: >50000Hrs
Light source: Bridgelux/Osram, CRI>90, SDCM<5, Lumens: 120-140lm/W
Control: ON/OFF, Optional Triac/0-10V dimming, Input: 110/220-240VAC 50/60Hz
Efficiency: >87%, THD<20%, Surge protection: 1KV
Certification: CE CCC CB ENEC RCM, Origin: Made in China
Detailed Description

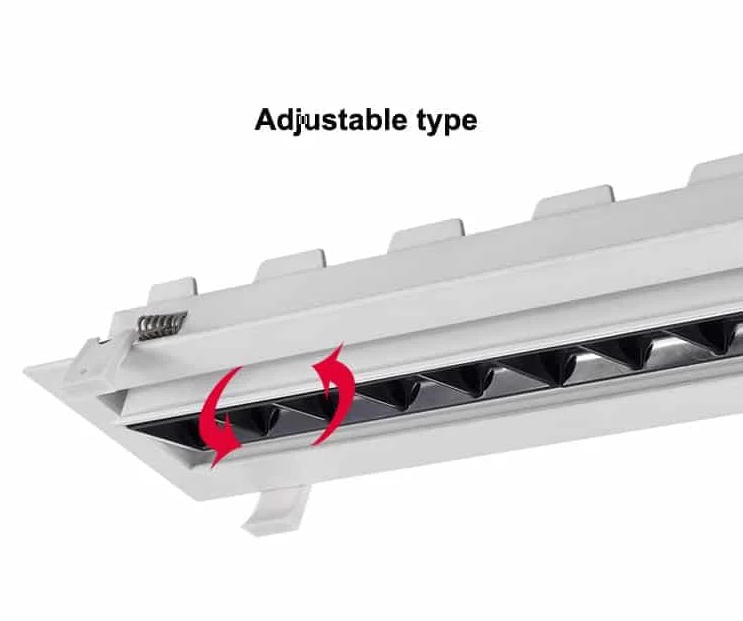

The Recessed Adjustable Led Linear Downlight series features a high-quality die-cast aluminum body with matt white/black finish. The reflector is made of anti-UV polycarbonate plastic, available in black as standard with white/gun black as optional colors. The springs/clips are constructed from high-strength metal for secure ceiling mounting. The product offers both fixed and adjustable versions, with the adjustable type capable of 30° tilt for wall washing applications.
The LED driver is sourced from premium brands (Eagleries/LiFud as standard, with Osram/Philips as options) and features advanced specifications including 110/220-240VAC input voltage, 50/60Hz frequency, flicker-free operation, PF>0.5 (0.9 optional), 1KV surge protection, THD<20%, and efficiency >87%. The product is available with optional Triac or 0-10V dimming capabilities for enhanced control flexibility.
The light source utilizes Bridgelux technology (with Osram as an alternative), delivering exceptional performance with CRI>90, color temperature options from 2700K to 6500K, and SDCM<5 for consistent color quality. With a lifetime exceeding 50,000 hours and LM80 certification, these downlights offer long-term reliability and energy efficiency. The product features excellent lumen maintenance (99.9%@1000hrs, 99%@3000hrs, 98%@10000hrs) and is certified with multiple international standards, backed by a 5-year warranty for complete peace of mind.
