Recessed LED Downlights 12V/24VDC/230VAC – Versatile Low Voltage Lighting for Commercial Use
Robust recessed LED downlights with multi-voltage support, aluminum housing, and high-lumen output, ideal for commercial and industrial environments.
Key Features
Durable aluminum housing designed to prevent yellowing over long-term use.
Compatible with DC12V/24V/36V/48V and 220-240VAC power inputs.
High-performance Bridgelux/Osram chips delivering 100–120lm/W with CRI >80.
Wide 120° beam angle for uniform illumination in large areas.
Certified with CE, EMC, LVD, RoHS with 2/3/5 years warranty options.
Technical Specifications
Housing: Aluminum body, matte white finish with aluminum trim
Driver: DC12V/24V/36V/48V or 220-240VAC input, IP22 rated
Optical: Bridgelux or Osram LEDs, CRI >80/90, CCT 2700K-6500K, SDCM<5
Efficiency: >87%, THD<20%, Beam angle: 120°, UGR<17
Certification: CE, LVD, EMC, RoHS, Warranty: 2/3/5 years
Detailed Description
Zhanzhao Recessed LED Downlights 12V/24VDC/230VAC are engineered to offer flexibility in power input with support for low-voltage DC12V/24V/36V/48V systems or standard 220-240VAC. The product comes in wattages from 7W to 24W and is suitable for commercial, hospitality, and industrial applications where stable, energy-efficient lighting is required.

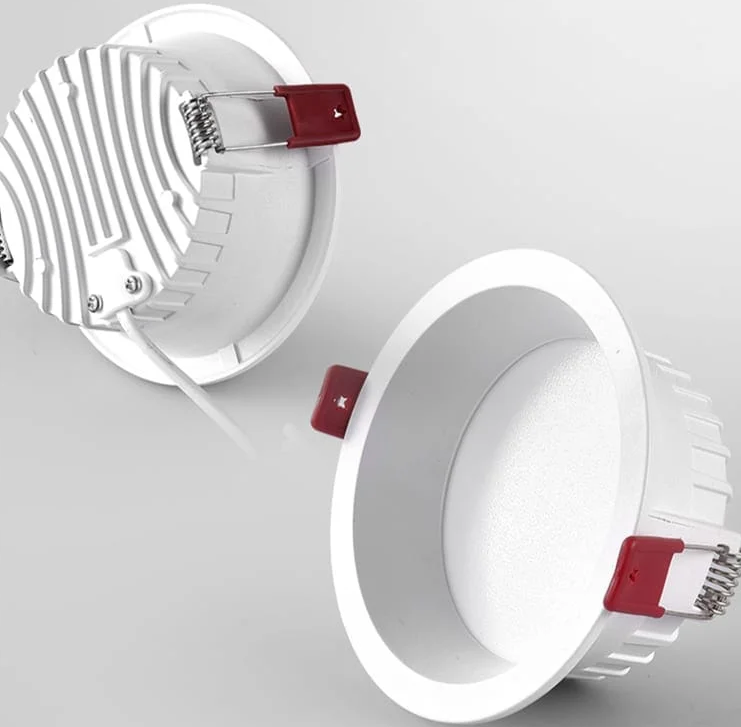

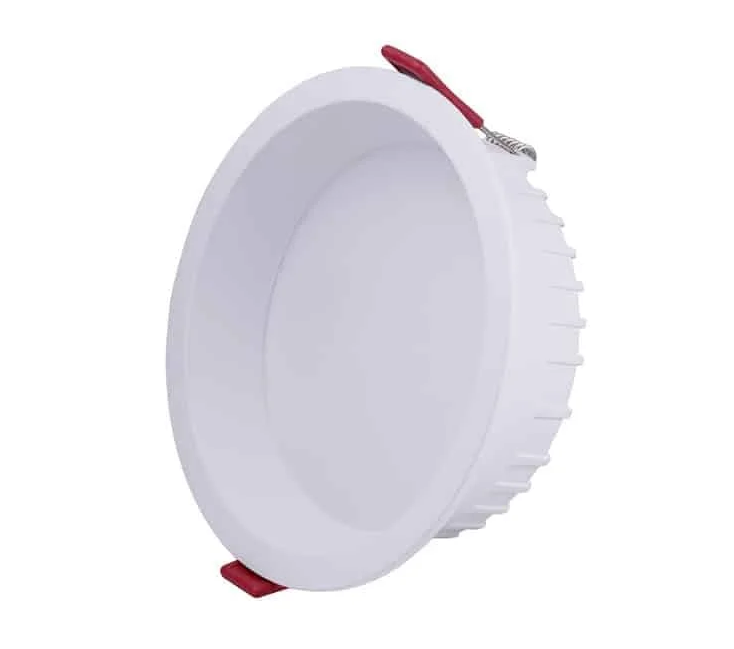

The fixture features a non-yellowing matte white aluminum housing with strong spring steel clips for secure recessed mounting. The PC frosted cover ensures glare-free light distribution, ideal for wide-area lighting. The integrated LED driver supports high voltage ranges and maintains a low THD (<20%) with a system efficiency >87%.
With high-lumen Bridgelux or Osram LED chips, this downlight achieves 100–120lm/W and a high color rendering index (CRI >80 or optional >90). The beam angle of 120° provides broad coverage while maintaining a low UGR<17 for visual comfort. The product is CE, EMC, LVD, and RoHS certified, backed by up to 5 years warranty, and rated for >50,000 hours of operating life, ensuring long-term reliability.
